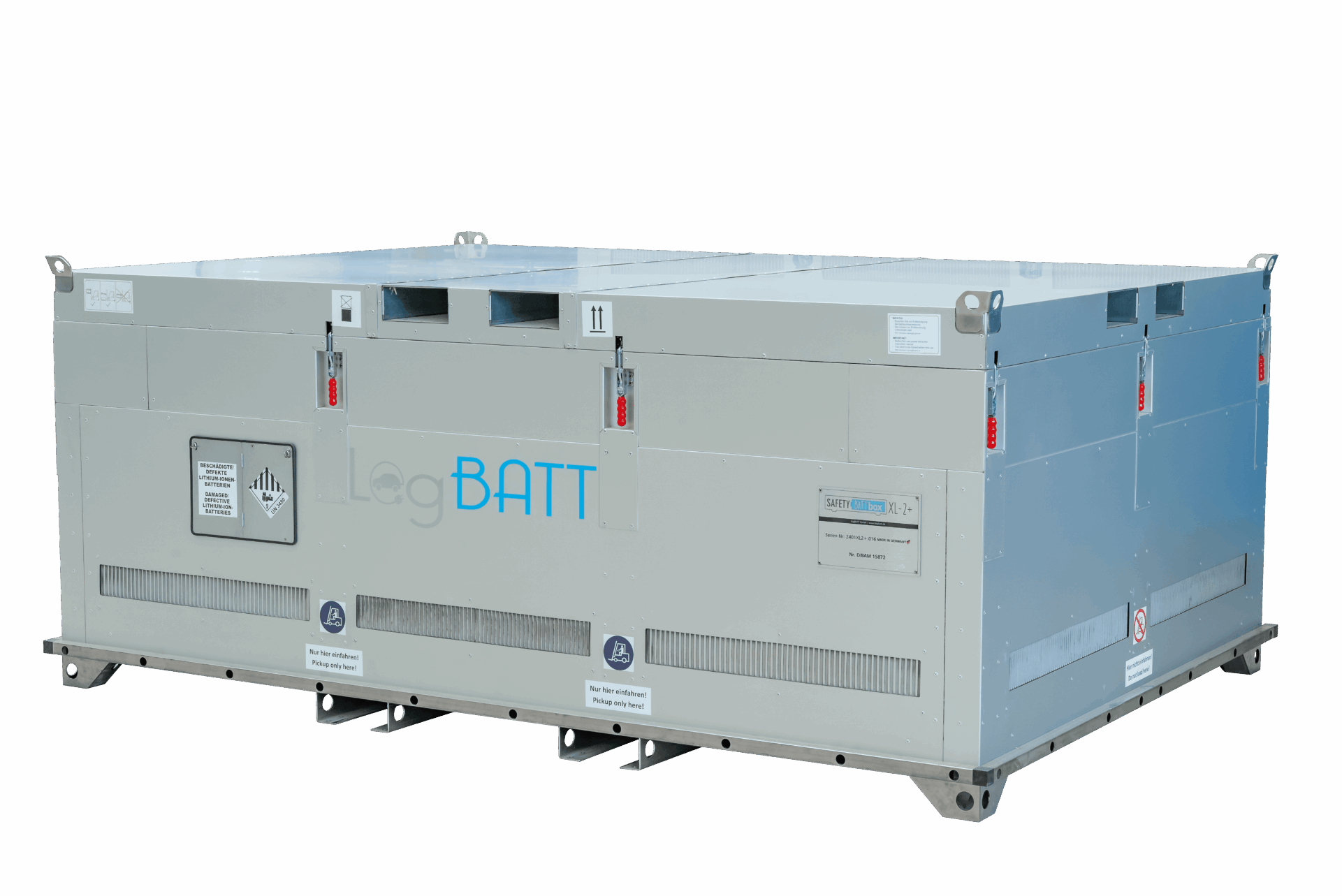

SafetyBATTbox XL-2.2+
– ADR transport box for critically faulty high-voltage batteries weighing up to 1,700 kg (LP906)
- The SafetyBATTbox XL-2.2+ from LogBATT is the most powerful transport solution in the LogBATT range and has been specially developed for handling critically defective high-voltage batteries from electric vehicles. As an ADR-compliant dangerous goods container, it meets the requirements of packing instruction LP906 for batteries that are no longer safe for transport.
- Typical applications include crash test vehicles, fire-damaged EV batteries, faulty high-voltage storage units and critical prototypes – in other words, wherever a standard hazardous materials container is no longer sufficient.
- Safety in the event of a fire: Proven by real-world fire tests carried out at independent testing institutes. The robust construction contains the fire within the box, whilst the external walls remain below 100 °C. Flames and projectiles do not escape.
- Flue gas management and filter system: The integrated filter ensures that no excess pressure builds up during a thermal event and that escaping flue gases do not pose a hazard to the immediate surroundings.
- Efficient handling: Quick-release fasteners, forklift pockets, LogCOVER and LogBAGs reduce the effort involved in packing, even when under time pressure.
- Reusable complete system: the box, fire-retardant blanket and packing cushions can be reused several times.
- Type approval: Determined on a case-by-case basis by the BAM (D-BAM 16336), Packaging Group I – valid for ADR, RID, IMDG and ICAO.
- Included in the scope of delivery: LogCOVER fire-resistant blanket. LogBAGs are available as accessories.
Buy or rent – tailored flexibly to your needs
You can now benefit from even greater flexibility: our tried-and-tested SafetyBATTbox XL-2.2+ for the safe transport of lithium-ion batteries – whether undamaged, damaged or critically damaged – is now available not only for purchase but also for hire. This provides you with a cost-effective solution for fluctuating needs, time-limited projects or short-term requirements. Please get in touch with us; we’ll be happy to advise you personally and work with you to find the right rental solution.
Other products
SafetyBATTbox XL-lite

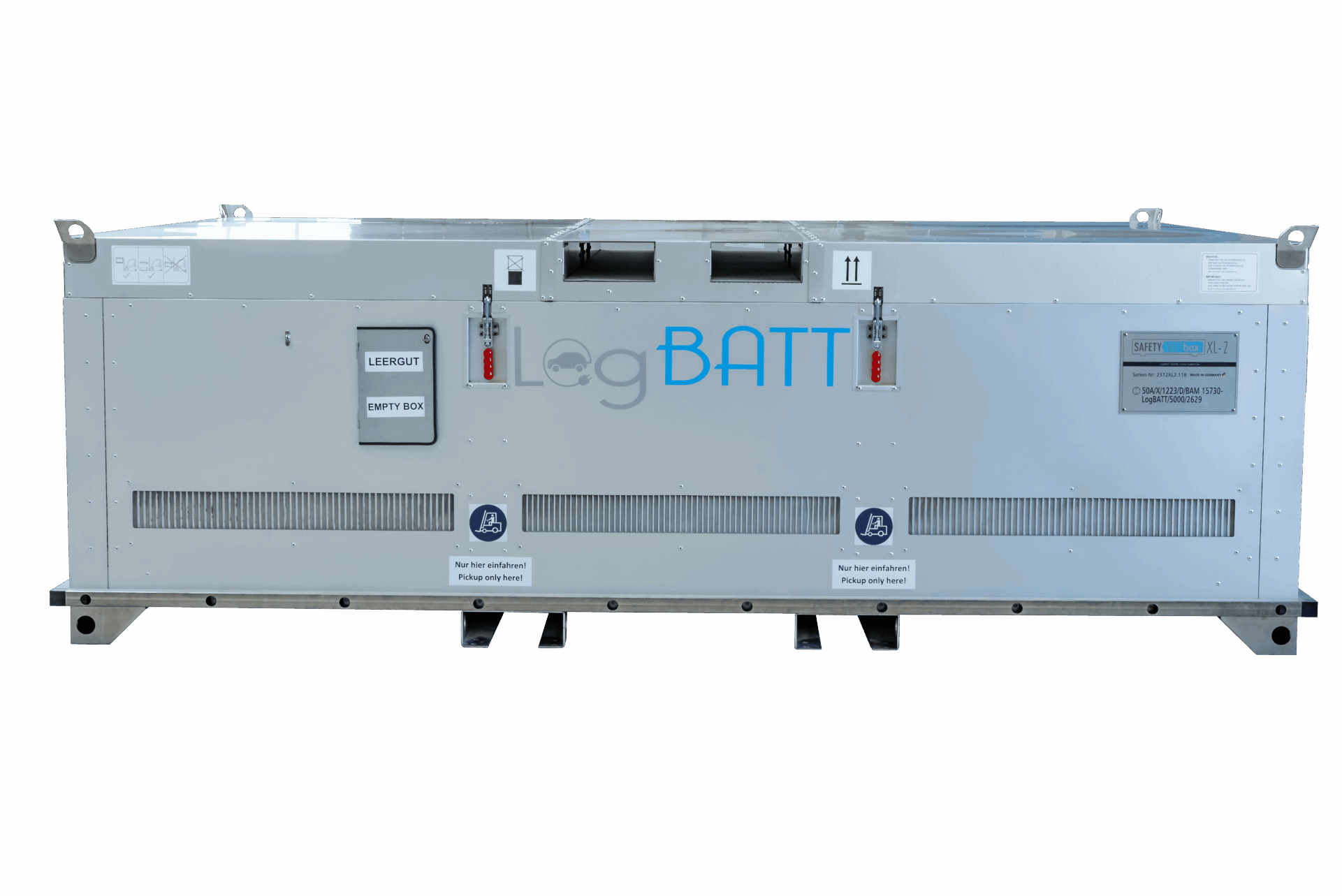

SafetyBATTbox XL 2.2
SafetyBATTbox L-2
SafetyBATTbox M-2
SafetyBATTbox S-1
SafetyBATTbox S-1-lite
Product information
Technical Specifications
| Type | SBB XL-2.2+ |
| Item No. | 300076 |
| Volume [l] | 4,050 |
| External dimensions [mm] | 3,233 × 2,284 × 1,350 |
| Internal dimensions [mm] | 2,790 × 1,820 × 797 |
| Internal dimensions [mm] | 2,770 × 1,760 × 750 |
| Material | Anodised aluminium (cladding) / stainless steel (inner pan) |
| Unladen weight [kg] | 1,700 |
| Max. payload [kg] | 1,700 |
| Max. gross weight [kg] | 3,400 |
| ADR Special Provision | SV376 |
| ADR Packaging Instructions | LP906 |
| Authorisation | Case-by-case determination D-BAM 16336 |
| Packaging Group | I |
| Stackable | 1 + 1 |
| Scope of application | Lithium batteries |
| Application | Transport and storage |
| Ground clearance [mm] | 100 |
Get in touch
FAQ – Frequently Asked Questions about the SafetyBATTbox XL-2.2+
What is the SafetyBATTbox XL-2.2+?
The SafetyBATTbox XL-2.2+ from LogBATT is the most robust transport box in the range, designed for critically faulty high-voltage batteries from electric vehicles. As an ADR-compliant dangerous goods container, it complies with packaging instruction LP906 and can accommodate batteries weighing up to 1,700 kg.
For which batteries and packaging instructions is the XL-2.2+ approved?
The XL-2.2+ is approved in accordance with LP906 (Packing Group I) for critically defective lithium-ion batteries – that is, batteries that are no longer safe for transport. The type approval is a case-by-case determination by the BAM (D-BAM 16336) and applies to ADR, RID, IMDG and ICAO.
How much can the SafetyBATTbox XL-2.2+ hold?
The XL-2.2+ can accommodate batteries weighing up to 1,700 kg and is therefore designed for complete high-voltage traction batteries from electric vehicles – the largest capacity in LogBATT’s SafetyBATTbox transport range.
How do you transport a seriously faulty electric car battery safely?
For critically defective high-voltage batteries of this size, an LP906-approved dangerous goods container that can withstand thermal runaway is required. LogBATT’s SafetyBATTbox XL-2.2+ contains the fire within the container; the outer walls remain below 100 °C, and the smoke management system prevents overpressure.
Which box is suitable for crash-tested vehicles or fire-damaged EV batteries?
The SafetyBATTbox XL-2.2+ is designed for crashed vehicles, fire-damaged EV batteries, faulty high-voltage storage units and critical prototypes – wherever a standard hazardous materials container is no longer sufficient.
What happens in the event of a thermal runaway in the XL-2.2+?
The robust construction contains flames and projectiles within the unit; the external walls remain below 100 °C; and the integrated filter system prevents overpressure and vents escaping flue gases in a controlled manner. Safety has been verified through real-world fire tests carried out by independent testing institutes.
What is included in the SafetyBATTbox XL-2.2+ package?
The LogCOVER fire-resistant blanket is included in the scope of delivery; the LogBAGs for securing the load are available as accessories. The box, fire-resistant blanket and packing cushions can be reused several times.
